ORIFICE PLATE ASSEMBLIES
ORIFICE PLATE ASSEMBLIES

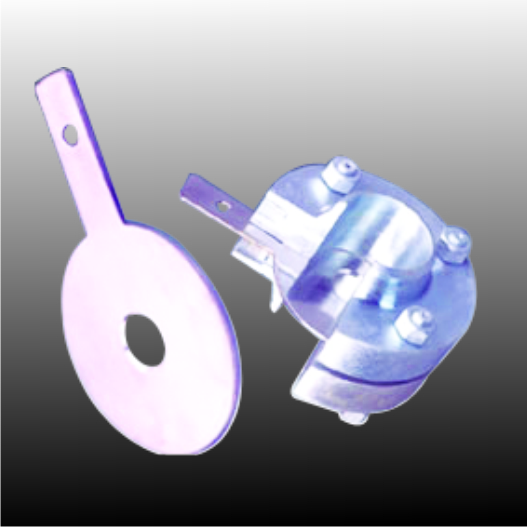

Orifice plate assemblies are the most commonly used differential type flow measurement element in the process industry. These are precision machined as per various international standards. The assemblies are available with Weld-neck, Slip-on, Socket Weld and Screwed type flange mountings. These are the simplest for installation and maintenance.
Technical Specifications
| Pipe Sizes | Any Size |
|---|---|
| Design Standard | ISO 5167, ASME, AGA, R.W.Miller, etc. |
| Orifice / Flange Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Titanium, Monel, etc. |
| Types | Square Edge, Eccentric, Quarter Circle, Conical, Multi Hole, Segmental, Compact, etc. |
| Mounting type | Flanged, Butt welded in pipe |
| Typical Applications | Gases, Liquids, Steam |
