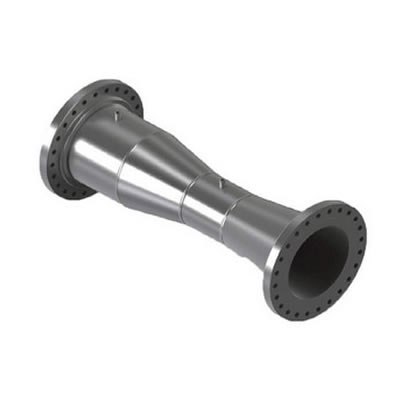

Venturi Nozzle
Venturi Nozzle
Venturi Nozzle is a pressure type flow element generally used in fire-fighting systems to measure the water flow. A differential pressure is produced proportional to the flow rate due to the precisely machined profile of the flow element. The display can be analog or digital.
Technical Specifications
| Pipe Sizes | 25 NB to Any size |
|---|---|
| Design Standards | ISO 5167, ASME, R.W. Miller, AGA |
| Pipe / Flange Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Titanium, Monel |
| Wedge Material | Stainless Steel, Hastelloy, Titanium, Monel |
| Mounting Type | Flanged, Butt weld |
| Applications | Gases, Liquids, Steam |
